KCDMPAD
Details
Product Brief
Expand your MacBook Air or MacBook Pro equipped with dual USB-C ports with this 10-in-1 USB-C Multi Port adapter. With up to 100W Power delivery and Dual 4K UHD HDMI output you can easily work from home and stay on top. SD/Micro SD card readers will handle you pictures and portable media and with Gigabit LAN and 2 x USB-C and 2 x USB-A ports you will be able to access everything you need to get the job done wherever you are

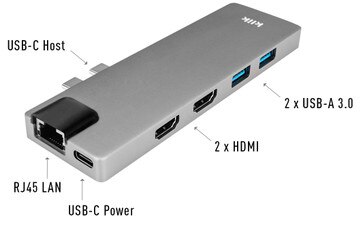

• 2 x USB-C male connectors
• 2 x HDMI female connectors
• 1 x RJ45 female Gigabit LAN connector
• 2 x USB 3.0 type-A female connectors
• 1 x SD card reader slot
• 1 x Micro SD card reader slot
• 1 x USB-C female connector for power
• USB 3.0 ports support data transfer up to 5Gbps
• USB-C PD (Power Delivery) supports 100W charging
• Supports mirror or extended desktop mode
• Extend your MacBook display across 2 separate monitors
• Supports dual HDMI at 4K Ultra HD 3840 x 2160 @60Hz*
• Plug and Play - no drivers or software required
* For 15 MacBook Pro 2017 or later & 16 MacBook Pro. For other MacBook Pro models & MacBook Air, this adapter supports dual monitors with 1 x 4K @60Hz & 1 x 4K @30Hz
* Supports dual monitors for MacBooks with an Intel chip but only supports a single monitor for MacBooks with the new M1 or M2 chip
* For video output the USB-C port on your computer must support DP-Alt Mode (DisplayPort Alternate Mode) check your laptops specification on its manufactures website or user manual
FAQ
A: This adapter will support dual monitors on Intel based MacBook's. On newer M1 & M2 based MacBook's, the MacOS only supports one external monitor. Apple only support multiple monitors on MacBook's with the M1 Pro & M1 Max Chip. If you have a MacBook with a new M1 or M2 chip and need multiple monitors please try our new KCMPH2DL
Q: I have the LAN port connected but I cant access the Internet
A: Check the LED lights on the RJ45 port, if your green LED is illuminated you have a successful connection to your network. If you have this green light but no yellow light which shows activity check your network adapter, router or contact your ISP to ensure your Internet connection is active
Q: The adapter is connected but is unresponsive, what should I do?
A: Sometimes after a longer period of inactivity the sleep function may not wake up in normal way. In this case, or if the adapter becomes unresponsive, first try unplugging and re plugging the USB-C connection, if this fails, disconnect the adapter from the power and re boot your system, if you are still having problems please contact Comsol support
