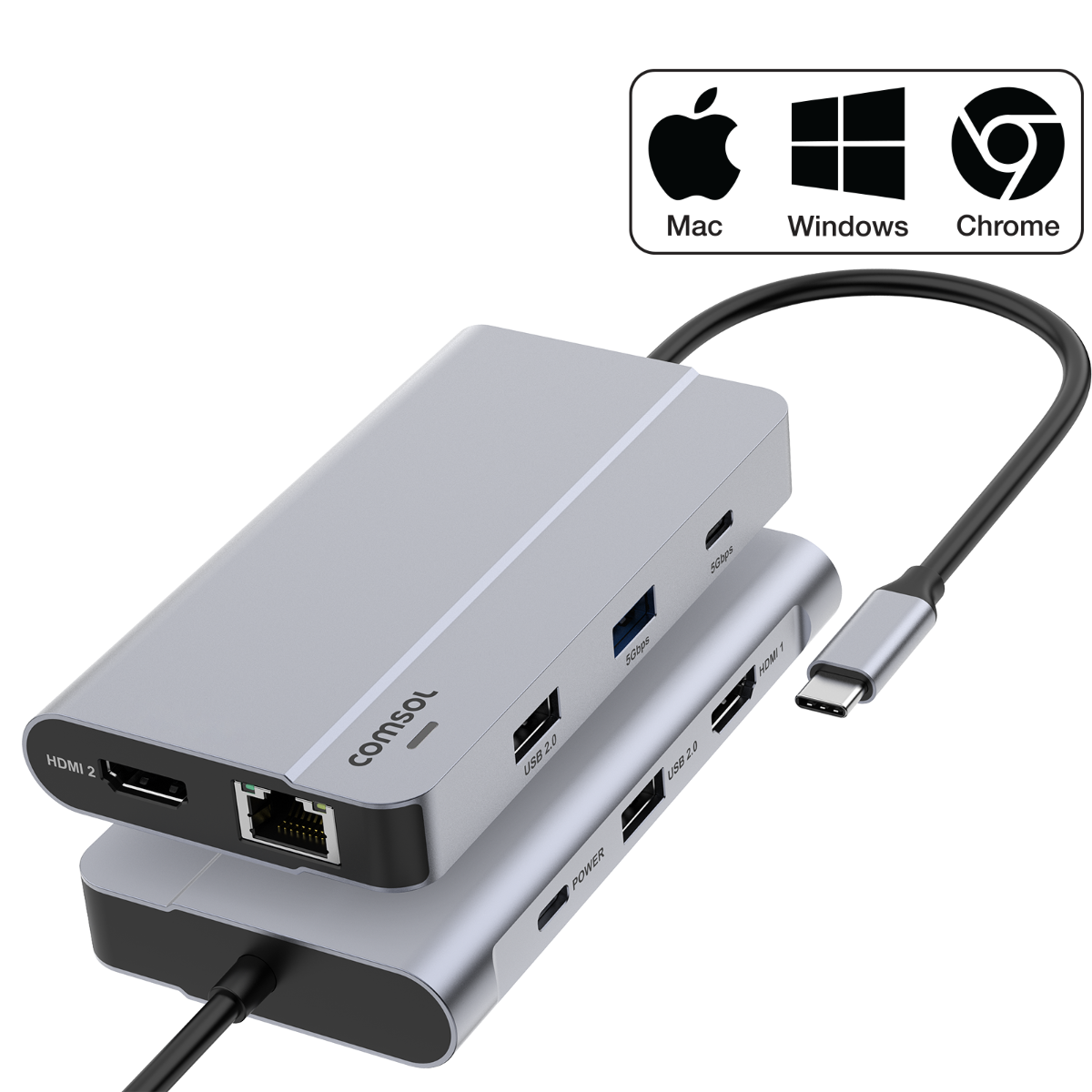

USB-C Dual HDMI Monitor 9 Port Dock
Features
85W
Fast Charging
USB-C
9-Port Dock
Dual
Monitor Output
Supports
Win & ChromeOS
4K UHD
3840 x 2160

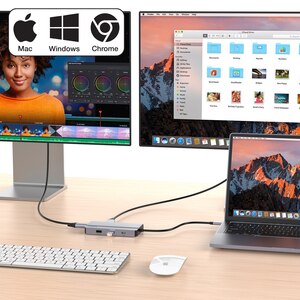

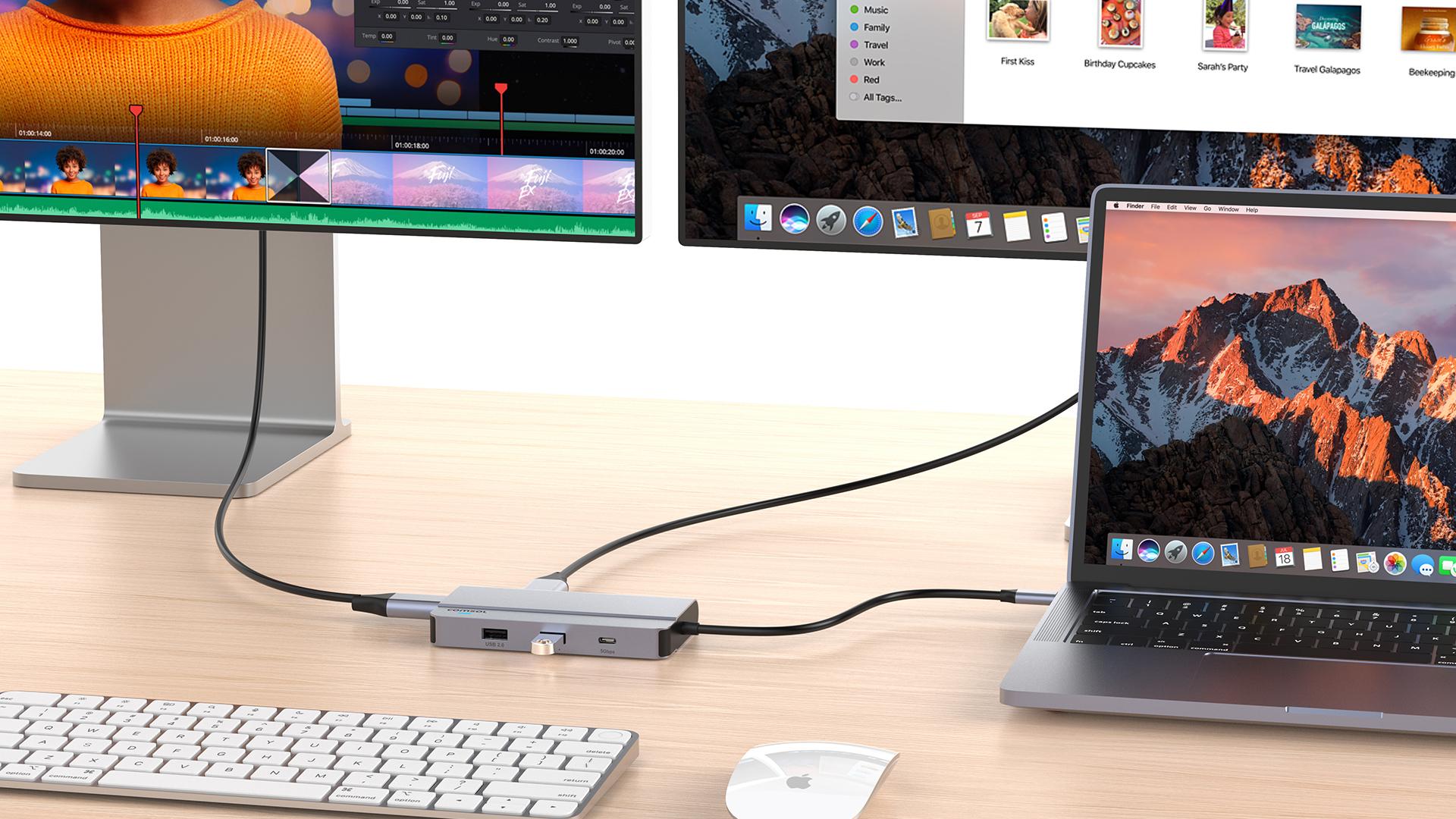

RUN DUAL MONITORS
In extended desktop mode on a MacBook, Windows laptop or Chromebook using Silicon Motion Technology
4K ULTRA HD AND 1080P HD
Support for single or dual monitors
USB-C POWER PORT
Supports USB-C chargers up to 140W and provides up to 85W of power for laptop charging
Specifications
Charging Specs
Windows Monitor Support: Yes
Mac/Chrome Monitor Support: Yes

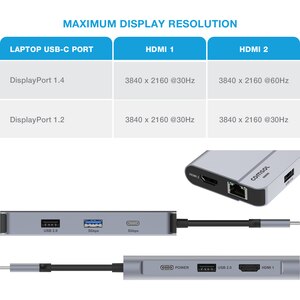

Max Single Resolution: 3840 x 2160 @60Hz 4K UHD
Max Dual Resolution: 1 x 3840 x 2160 @60Hz 4K UHD, 1 x 3840 x 2160 @30Hz 4K UHD
Power Supply: No
Host Port Connection: USB-C

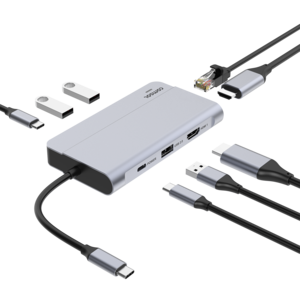

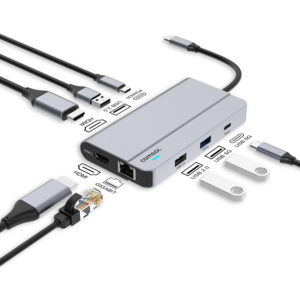

Expansion Ports: USB-C Male, USB-C Power Port, USB-A 2.0 Data Ports, HDMI Port 1 Silicon Motion, HDMI Port 2 DP Alt Mode, RJ45 Gigabit LAN, USB-A 3.2 Data Port, USB-C 3.2 Data Port
Product Dimensions: 120 x 65 x 17mm
Product Weight: 284g
OS Compatibility: Windows, MacOS, CromeOS
Host Display USB-C Requirements: DP Alt Mode/Silicon Motion
Certification: AS/NZS 62368-1:2022, RCM, EMC
Connectivity
Ethernet
HDMI x2
USB-A x3
USB-C x2
Compatibility
Video Output
Supports USB-C Video between supported devices, for example most:
- Windows Laptops
- MacOS Devices
- ChromeOS Devices
HDMI Port 1
HDMI Port 1 utilizes SiliconMotion technology to achieve video output.
It is recommended to install/update any SiliconMotion drivers & software when first connecting your laptop to the dock.
To find out more, head to the "Downloads" tab.
HDMI Port 2 - Windows/ChromeOS Laptop Compatibility
Compatible with modern USB-C laptops that support video output over USB-C (DisplayPort Alt Mode).
Not supported on devices with data-only USB-C ports.
To check if your laptop supports video output over USB-C, look for a DisplayPort (DP), USB4 or Thunderbolt symbol next to the USB-C port.
If there are no markings next to the USB-C port, refer to the specifications listed in the user manual of your laptop. Look for mentions for “DisplayPort Alt Mode”, "Thunderbolt" or “USB-C video output.”
USB-C Ports without these indicators generally support data and charging only.
HDMI Port 2 - Apple Laptop Compatibility
Compatible with MacBook M1, M2, M3, M4 and M5 laptops.
USB-C video output behaviour may vary depending on your Mac model and macOS version.
If you're unsure about the compatibility of your device, please check with our support staff either via the Live Chat in the bottom right of the page or support@comsol.com.au
Sustainability
THE SUSTAINABILITY HIERARCHY
The Sustainability Hierarchy empowers us to make eco-conscious choices at every stage of our products’ lifecycles, from refusing unnecessary items to recovering valuable resources, fostering a more sustainable future.
Making Informed Choices
All stages of the electronic product lifecycle are important to consider in order to be sustainable consumers. The Sustainability Hierarchy, also known as the Rs of Sustainability, is a valuable tool to help guide business and consumers in minimising our impact and making conscious choices.
As a brand it is important to consider which stage of the Sustainability Hierarchy aligns best with our efforts to minimise impact and contribute to a more sustainable future—particularly in early product design and manufacturing.
- Refuse: We have said no to unnecessary plastic and harmful materials in products and packaging.
- Rethink: We investigate innovative solutions to extend product life through durability and multifunctional design.
- Reduce: We have reduced packaging volumes and optimised material usage in line with APCO assessments.
To view more click here.
Specification
Downloads
User Manual
Driver
Download Silicon Motion Drivers for MacOS or update Drivers for Windows, Mac here
