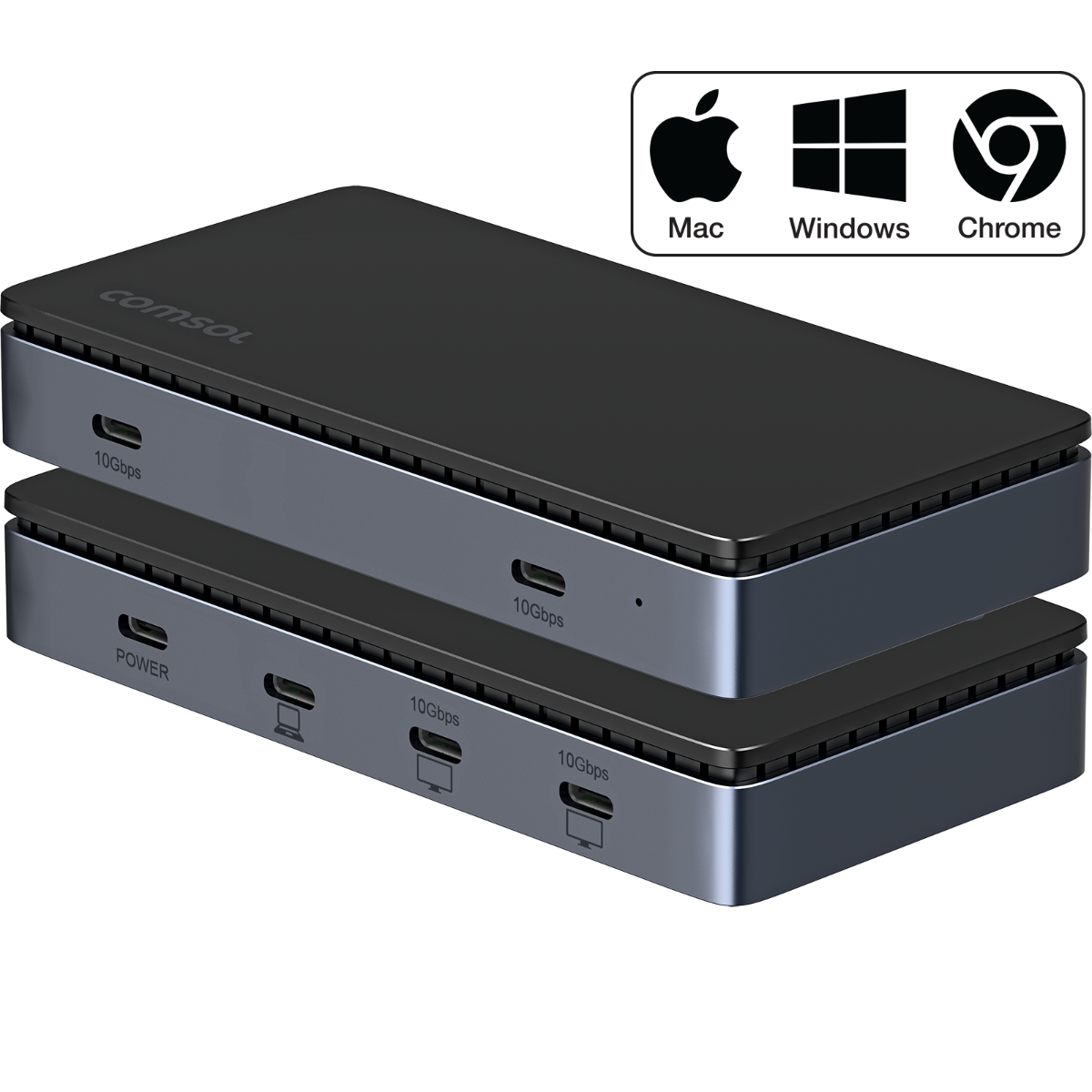

Dual Monitor USB4 Docking Station
Features
82W
Fast Charging
USB-C
5-Port Hub
Dual
Monitor Output
Supports
Win • Chrome • Mac
4K UHD
3840 x 2160

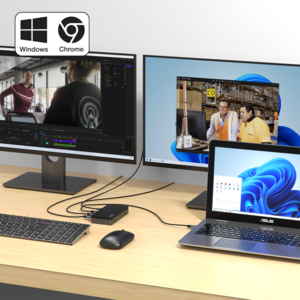

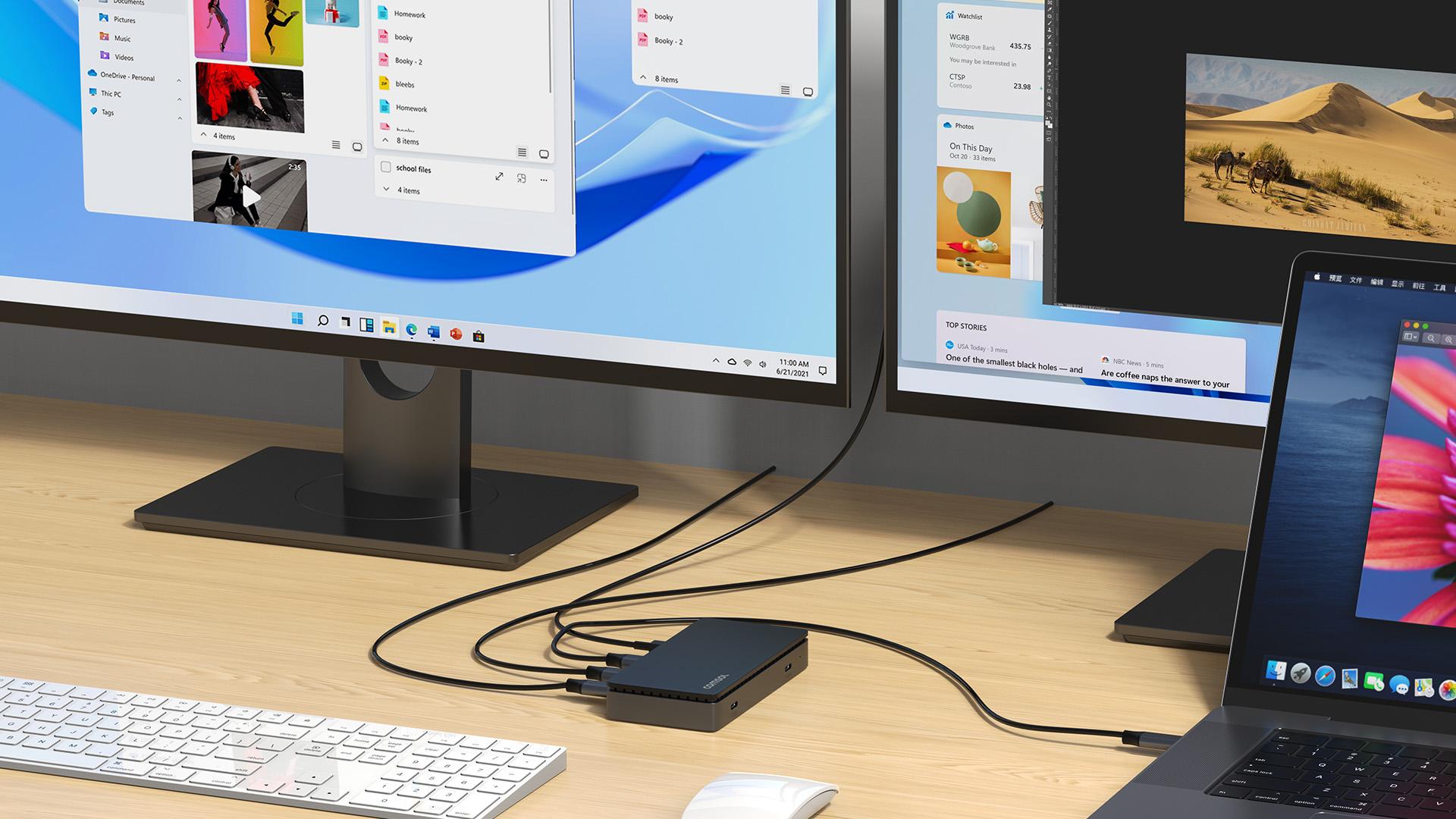

RUN DUAL MONITORS

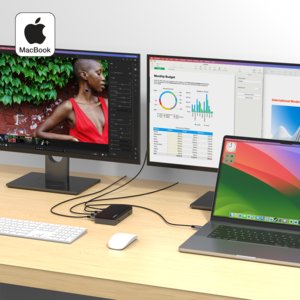

In extended desktop mode on a MacBook Pro, Windows laptop or Chromebook using USB4 technology
4K ULTRA HD AND 1080P HD
Support for dual monitors at 60Hz
8K ULTRA HD
Support for a single monitor at 30Hz
USB-C POWER PORT
Supports USB-C chargers up to 140W and provides up to 82W of power for laptop charging
HDMI OR DISPLAYPORT
Monitors require a USB-C to HDMI or USB-C to DisplayPort cable or adapter (not included)
Specifications
Charging Specs
Windows Monitor Support: Yes
Mac/Chrome Monitor Support: Yes

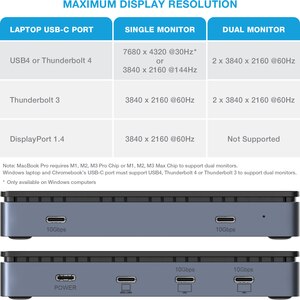

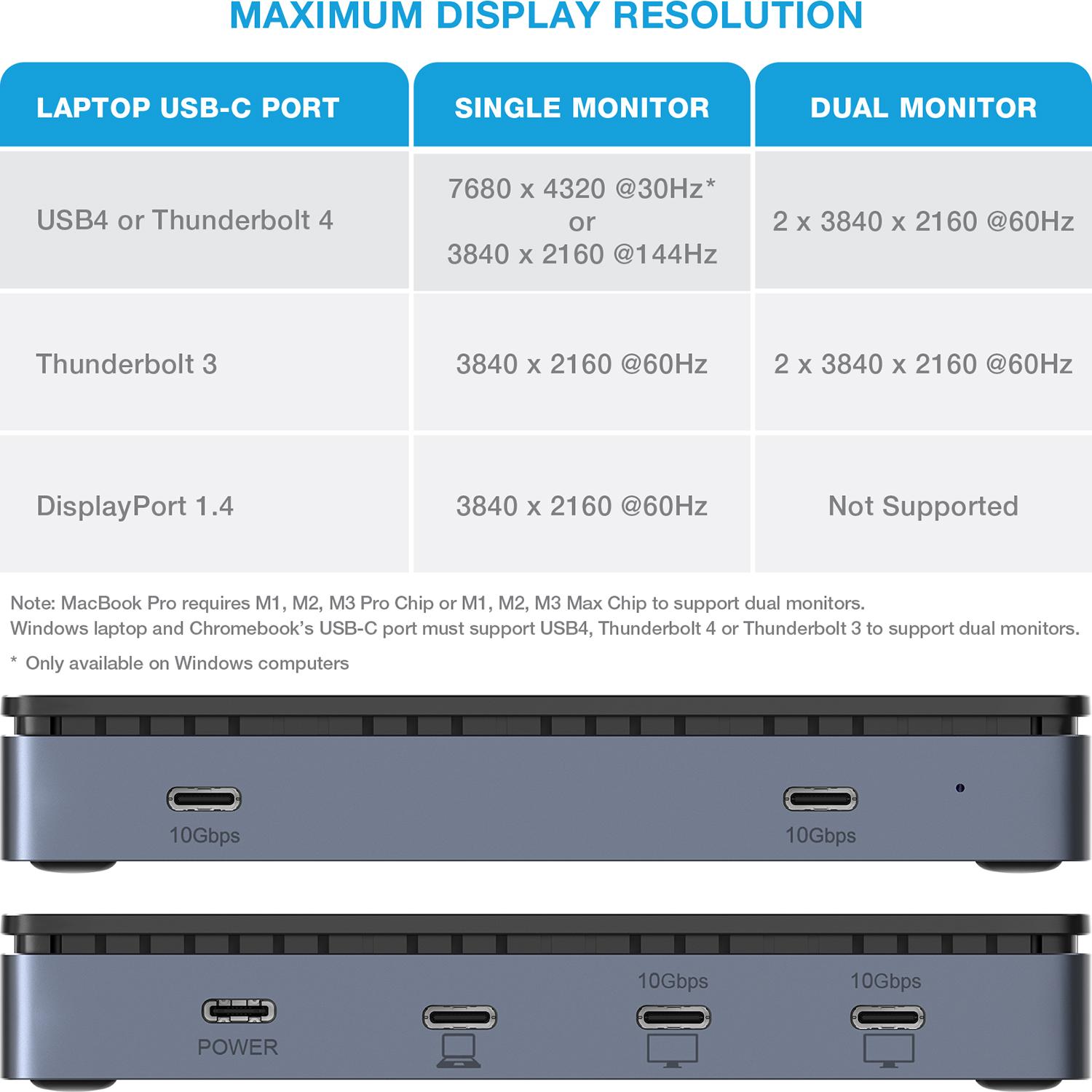

Max Single Resolution: 8K @30Hz (7680 x 4320)
Max Dual Resolution: 4K @60Hz (3840 x 2160)
Power Supply: No
Host Port Connection: USB4

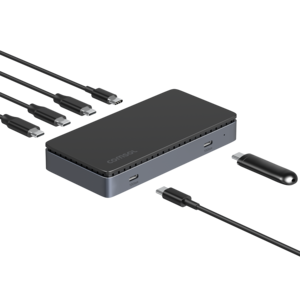

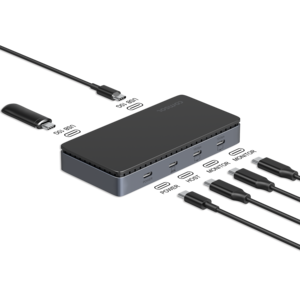

Expansion Ports: USB-C Power Port, USB4 Host Port, 2 x USB-C 10Gbps Data/Monitor Ports, USB-C 10Gbps Data Port 4.5W, USB-C 10Gbps Data Port 7.5W,
Product Dimensions: 125 x 62 x 19mm
Product Weight: 115g
OS Compatibility: Windows, MacOS, ChromeOS
Host Display USB-C Requirements: USB-C Video via DP Alt Mode
Certification: EN IEC 62368-1:2020 + A11:2020, RCM, EMC
Connectivity
USB-C x6
Compatibility
Video Output
Supports USB-C Video between supported devices, for example most:
- Windows Laptops
- MacOS Devices
- ChromeOS Devices
Windows/ChromeOS Laptop Compatibility
Compatible with modern USB-C laptops that support video output over USB-C (DisplayPort Alt Mode).
Not supported on devices with data-only USB-C ports.
To check if your laptop supports video output over USB-C, look for a DisplayPort (DP), USB4 or Thunderbolt symbol next to the USB-C port.
If there are no markings next to the USB-C port, refer to the specifications listed in the user manual of your laptop. Look for mentions for “DisplayPort Alt Mode”, "Thunderbolt" or “USB-C video output.”
USB-C Ports without these indicators generally support data and charging only.
Apple Laptop Compatibility
Compatible with MacBook M1, M2, M3, M4 and M5 laptops.
USB-C video output behaviour may vary depending on your Mac model and macOS version.

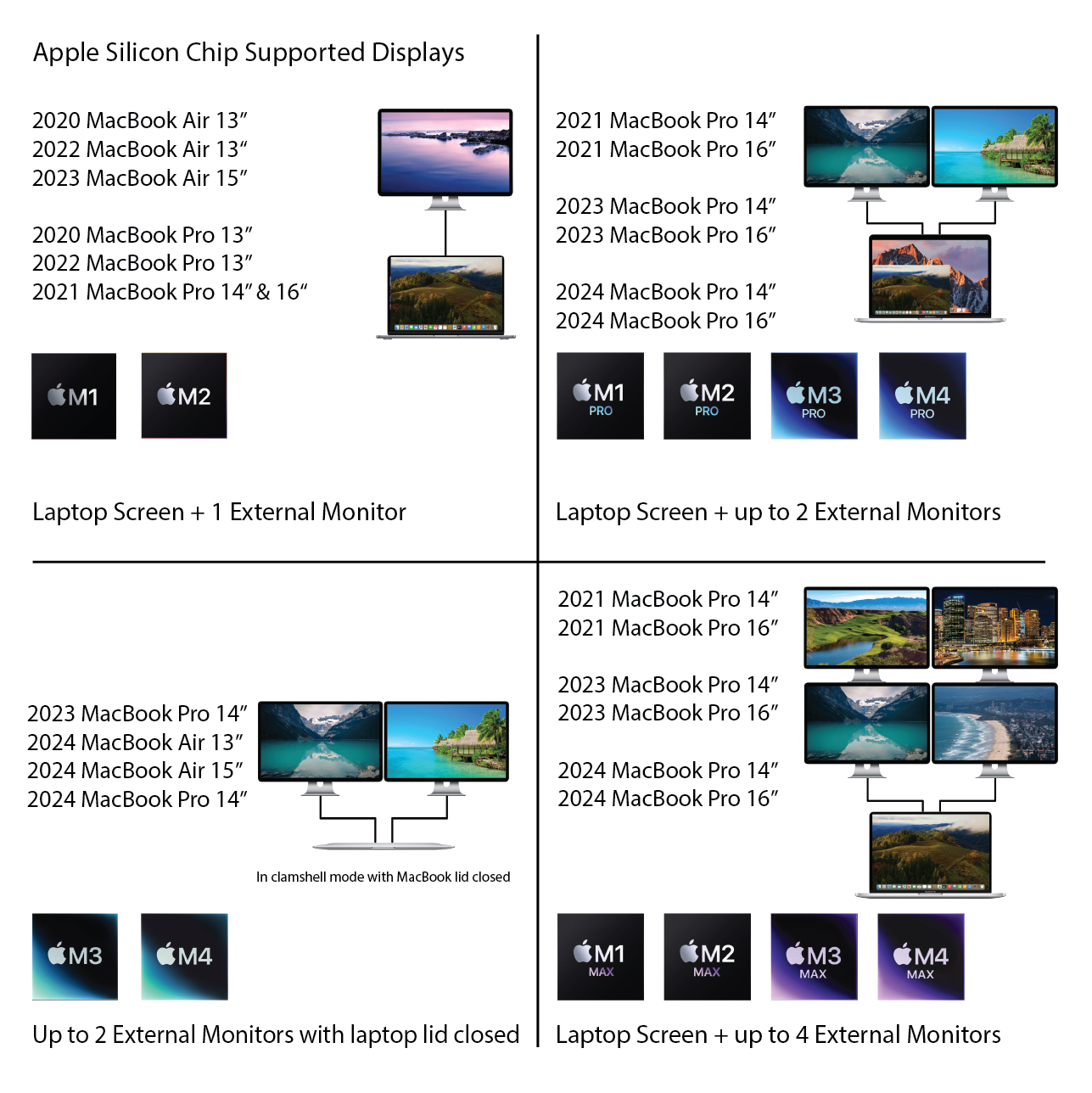

Base M-chip Macbooks only support one external monitor.
"PRO" M-chip Macbooks can support up to two external monitors
"MAX" M-chip Macbooks can support up to four external monitors.
If you're unsure about the compatibility of your device, please check with our support staff either via the Live Chat in the bottom right of the page or support@comsol.com.au
