SFP-40G-SR4-GE
Details
Product Brief

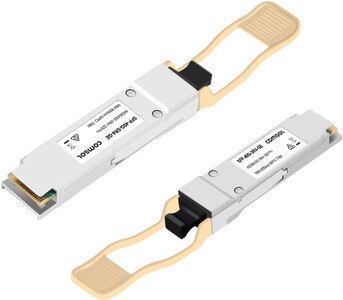

This Generic QSFP-40G-SR SFP+ transceiver module is factory loaded with specific configuration data required for 100% networking compliance. This Comsol 3rd party compatible transceiver will initialise and perform identically to the original transceiver and can be mixed and deployed with other original or 3rd party transceivers for seamless network interoperability and performance.
Every Generic QSFP+ transceiver is individually factory-tested to ensure 100% compatibility with your equipment and to guarantee hassle free installation and operation.
Specifications:
• Generic QSFP-40G-SR4 SFP+ transceiver module
• MTP/MPO-12 Connector
• Fibre Type: Multi-Mode
• Fibre Wavelength: 850nm VCSEL transmitter
• Hot-swappable input/output device that plugs into an Ethernet SFP+ port of a switch
• Supports digital diagnostics monitoring (DDM)
• Compliant with Small Form-Factor Pluggable (SFP) MSA specifications
• Compliant with IEEE802.3ba, QSFP+, MSA
• Supports a maximum distance of 100mtr over laser-optimized OM3 50/125 multi-mode fibre
• Supports a maximum distance of 150mtr over laser-optimized OM4 50/125 multi-mode fibre
• Single 3.3V power supply and TTL logic interface
• Approvals: C-Tick, FCC, CE, RoHS, ISO9001, TUV, UL
This Generic QSFP-40G-SR SFP+ transceiver module is factory loaded with specific configuration data required for 100% networking compliance. This Comsol 3rd party compatible transceiver will initialise and perform identically to the original transceiver and can be mixed and deployed with other original or 3rd party transceivers for seamless network interoperability and performance.
Every Generic QSFP+ transceiver is individually factory-tested to ensure 100% compatibility with your equipment and to guarantee hassle free installation and operation.
Specifications:
• Generic QSFP-40G-SR4 SFP+ transceiver module
• MTP/MPO-12 Connector
• Fibre Type: Multi-Mode
• Fibre Wavelength: 850nm VCSEL transmitter
• Hot-swappable input/output device that plugs into an Ethernet SFP+ port of a switch
• Supports digital diagnostics monitoring (DDM)
• Compliant with Small Form-Factor Pluggable (SFP) MSA specifications
• Compliant with IEEE802.3ba, QSFP+, MSA
• Supports a maximum distance of 100mtr over laser-optimized OM3 50/125 multi-mode fibre
• Supports a maximum distance of 150mtr over laser-optimized OM4 50/125 multi-mode fibre
• Single 3.3V power supply and TTL logic interface
• Approvals: C-Tick, FCC, CE, RoHS, ISO9001, TUV, UL
