HDMI-VGA35-AD
Details
Product Brief

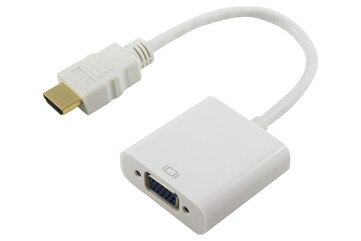

This HDMI to VGA + Audio adapter lets you connect a VGA monitor or projector and a set of speakers to a computer with a HDMI port. This adapter is host powered so there is no need for additional power, just plug in and this active adapter will convert the HDMI signal to a VGA signal and also output audio.
Features
• Convert from HDMI to VGA + Audio
• 1 x HDMI male connector
• 1 x VGA 15 Pin female connector
• 1 x 3.5mm stereo female connector
• On-chip HDMI receiver with equalizer
• On-chip HDMI receiver core, compliant with HDMI 1.3b specification
• Supports pixel clock rate from 25MHz to 165MHz
• Supports analogue video output up to 1080p with an on-chip 10-bit DAC
• Supports maximum resolution up to 1920 x 1080
• Corrosion-resistant connectors designed for maximum conductivity and low signal loss
• Host powered - no need for external power adapter
• Supports Windows 2000 / XP / Vista / Win 7 (32/64-bit) / Win 8 (32/64-bit)
• Supports Mac OS 10.x and Linux 2.6+
This HDMI to VGA + Audio adapter lets you connect a VGA monitor or projector and a set of speakers to a computer with a HDMI port. This adapter is host powered so there is no need for additional power, just plug in and this active adapter will convert the HDMI signal to a VGA signal and also output audio.
Features
• Convert from HDMI to VGA + Audio
• 1 x HDMI male connector
• 1 x VGA 15 Pin female connector
• 1 x 3.5mm stereo female connector
• On-chip HDMI receiver with equalizer
• On-chip HDMI receiver core, compliant with HDMI 1.3b specification
• Supports pixel clock rate from 25MHz to 165MHz
• Supports analogue video output up to 1080p with an on-chip 10-bit DAC
• Supports maximum resolution up to 1920 x 1080
• Corrosion-resistant connectors designed for maximum conductivity and low signal loss
• Host powered - no need for external power adapter
• Supports Windows 2000 / XP / Vista / Win 7 (32/64-bit) / Win 8 (32/64-bit)
• Supports Mac OS 10.x and Linux 2.6+
