FSTST-02-S
Details
Product Brief
OS2 single-mode fibre (SMF) cables support up to 100 Gigabit high speed network applications over much longer distances than multi-mode cables.
Our OS2 9/125 fibre patch cables feature a flame retardant LSZH (Low Smoke, Zero Halogen) cable jacket to ensure minimal toxic and corrosive gas emissions in the event of a fire, making them compatible with most data centre requirements and critical area applications.
OS2 cables support 10Gb, 40Gb and 100Gb transfer speeds up to 40km and also support 1Gb up to 100 km. Each cable is 100% optically tested and supplied with its own individual insertion loss test report for maximum performance and reliability.
Features

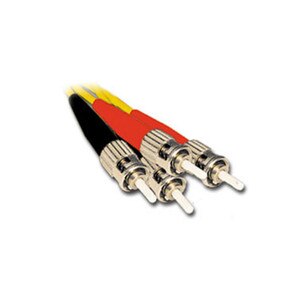

andbull; ST male connector to ST male connector
andbull; Yellow 9/125 OS2 fibre cable with LSZH jacket
andbull; Supports 1Gb Ethernet up to 100 km
andbull; Supports 10Gb, 40Gb and 100 Gb up to 40 km
andbull; Bandwidth: >100GHz-km
andbull; 100% optically tested and supplied with individual insertion loss test report
andbull; Typical insertion loss <0.2dB
andbull; Typical return loss >50dB
andbull; Jacket outside diameter (OD) 3.0mm
andbull; Lifetime warranty
OS2 single-mode fibre (SMF) cables support up to 100 Gigabit high speed network applications over much longer distances than multi-mode cables.
Our OS2 9/125 fibre patch cables feature a flame retardant LSZH (Low Smoke, Zero Halogen) cable jacket to ensure minimal toxic and corrosive gas emissions in the event of a fire, making them compatible with most data centre requirements and critical area applications.
OS2 cables support 10Gb, 40Gb and 100Gb transfer speeds up to 40km and also support 1Gb up to 100 km. Each cable is 100% optically tested and supplied with its own individual insertion loss test report for maximum performance and reliability.
Features
andbull; ST male connector to ST male connector
andbull; Yellow 9/125 OS2 fibre cable with LSZH jacket
andbull; Supports 1Gb Ethernet up to 100 km
andbull; Supports 10Gb, 40Gb and 100 Gb up to 40 km
andbull; Bandwidth: >100GHz-km
andbull; 100% optically tested and supplied with individual insertion loss test report
andbull; Typical insertion loss <0.2dB
andbull; Typical return loss >50dB
andbull; Jacket outside diameter (OD) 3.0mm
andbull; Lifetime warranty
