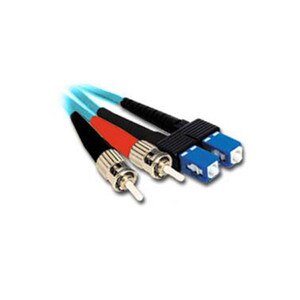

Product BriefST male connector to SC male connectorAqua 50/125 OM3 laser-optimized fibre cable with LSZH jacketBackward compatible with 50/125 OM2 fibreSupports 1Gb Ethernet up to 550 metresSupports 10Gb Ethernet up to 300 metresSupports 40Gb and 100Gb up to 100 metresFull support for LED & VCSEL light sources @ 850nm & 1300nmBandwidth: 2000/500 MHz-km @ 850//1300 nm100% optically tested and supplied with individual insertion loss test reportTypical insertion loss <0.2dBTypical return loss >35dBJacket outside diameter (OD) 3.0mmLifetime warranty
OM3 laser-optimized multi-mode fibre (LOMMF) cables support 10 Gigabit high speed network applications and offer complete backward compatibility with existing 50/125 OM2 cabling systems.
Our OM3 50/125 fibre patch cables feature a flame retardant LSZH (Low Smoke, Zero Halogen) cable jacket to ensure minimal toxic and corrosive gas emissions in the event of a fire, making them compatible with most data centre requirements and critical area applications.
OM3 cables support 10Gb transfer speeds up to 300 metres and also support 1Gb up to 550 metres, 40Gb up to 100 metres and 100Gb up to 100 metres. Each cable is 100% optically tested and supplied with its own individual insertion loss test report for maximum performance and reliability.
