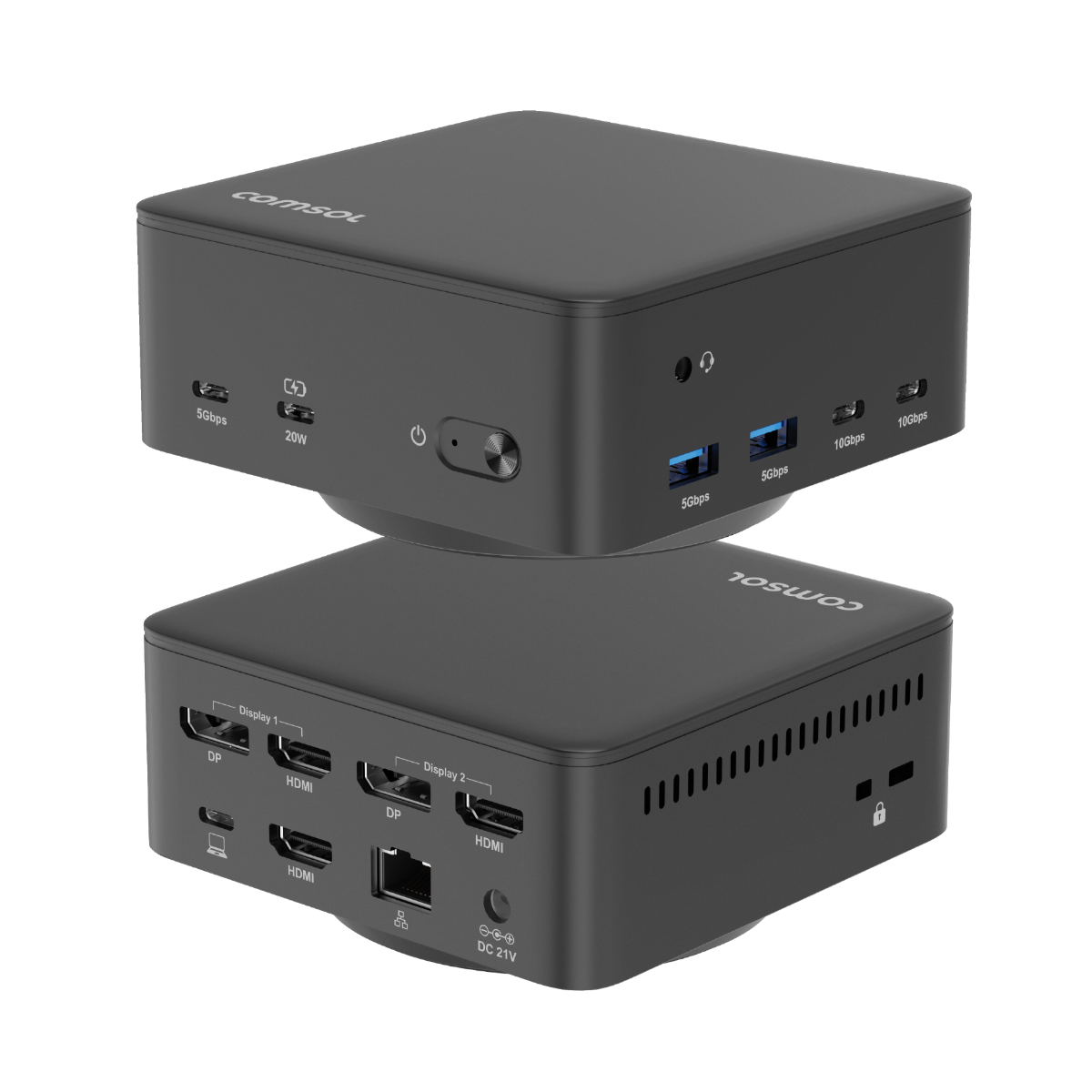

Universal Triple 4K Docking Station

Part No. DS34HDVS
Warranty:2 years
RRP inc GST:$399.00

Connect a laptop to three 4K monitors, keyboard & mouse, USB devices and a wired network, all via a single USB-C connection

Compatibility

  • Windows
  • MacOS
  • ChromeOS

Charging Output

USB-C Host: PD3.0 98W Max
USB-C Charge Port: 20W Max

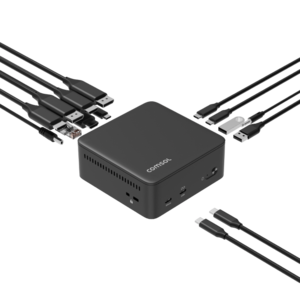

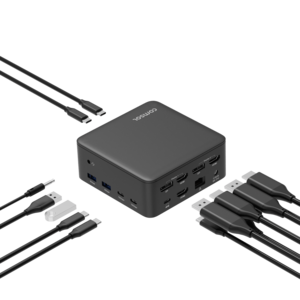

In the Box

  • 1 x Triple HDMI Docking Station
  • 1 x 135W USB-C Power Adapter
  • 1 x USB-C to USB-C Host Cable
  • 1 x USB-A to USB-C Adapter
  • 1 x VESA Mounting Bracket
Back

Features

90W

Fast Charging

USB-C

12-Port Dock

Triple

Monitor Output

Supports

Win • Chrome • Mac

4K UHD

3840 x 2160

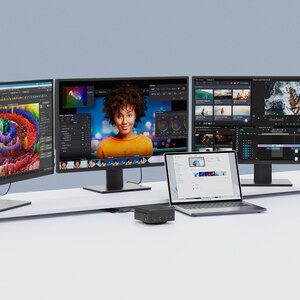

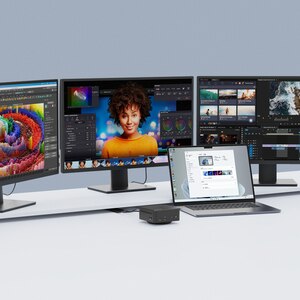

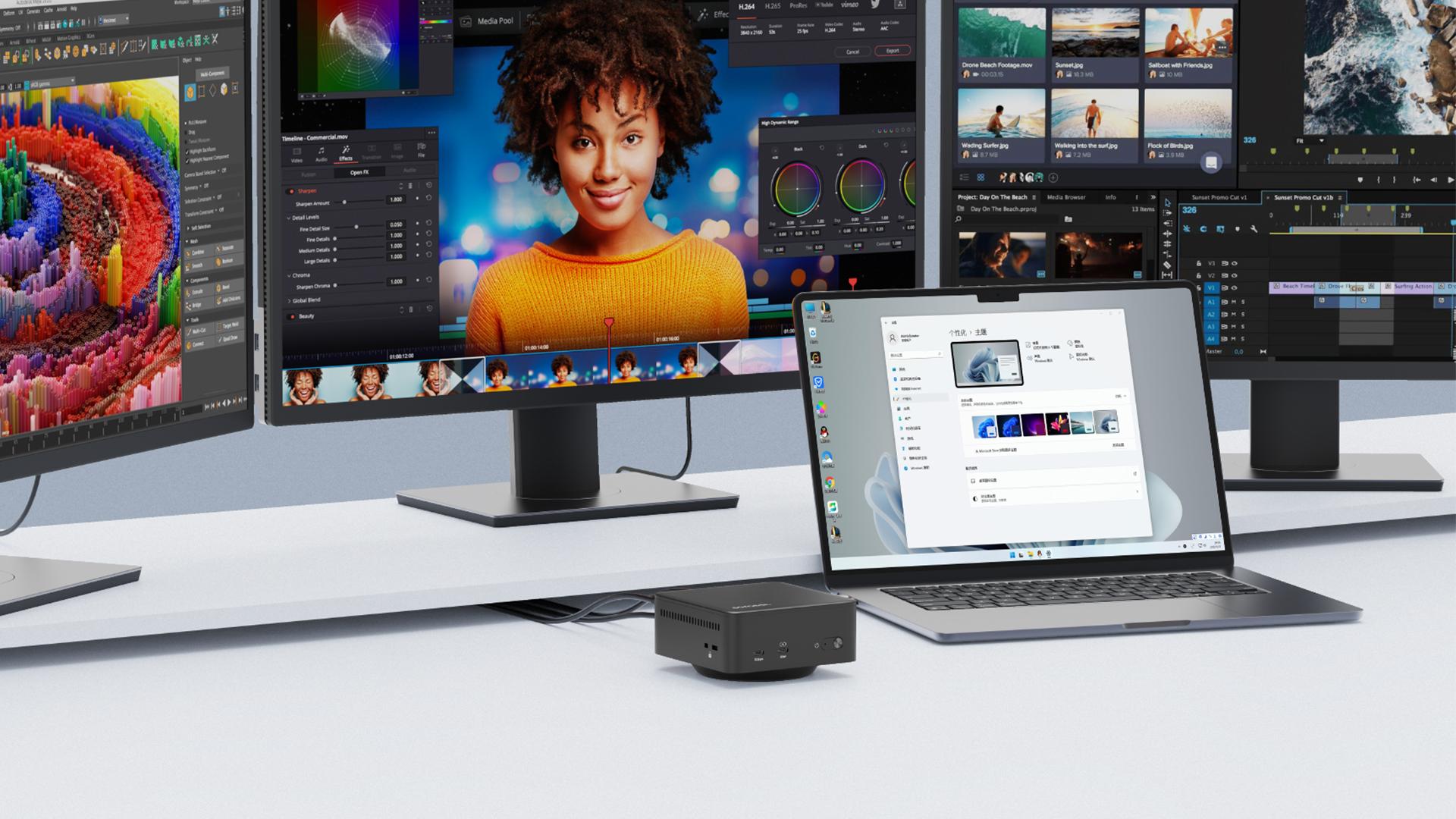

RUN TRIPLE MONITORS

in extended desktop mode on a MacBook, Windows laptop or Chromebook using DisplayLink technology.

4K ULTRA HD AND 1080P HD Support

for single, dual or triple monitors at 60Hz

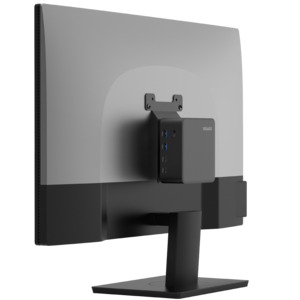

VESA MOUNT Bracket included

to help declutter your desk and maximize workspace

135W POWER ADAPTER Included

to power all connected devices and provide up to 98W USB-C power pass-through

Back

Specifications

Charging Specs

Max Single Resolution: 5K @60Hz (5120 x 1440)

Max Dual Resolution: 5K @60Hz (5120 x 1440)

Max Triple Resolution: 4K @60Hz (3840 x 2160)

Power Supply: 135W DC Power

Host Port Connection: USB-C

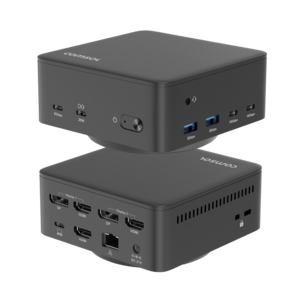

Expansion Ports: USB-C 5Gbps Data Port, USB-C 20W Charge Only Port, Power Button, 3.5mm Audio Port, 2 x USB-A 5Gbps Data Ports, 2 x USB-C 10Gbps Data & Charge Ports, Display 1 (HDMI or DisplayPort), Display 2 (HDMI or DisplayPort), HDMI Port (DP Alt Mode), USB-C Host Port, RJ45Gb LAN, DC Power Input, Security Slots

Product Dimensions: 107 x 107 x 54mm

Product Weight: 426g

OS Compatibility: Windows, MacOS, ChromeOS

Host Display USB-C Requirements: Universal/USB-C Video via DP Alt Mode (3rd HDMI Port)

USB-C Output: Up to 98W via USB-C Host port, up to 20W via USB-C charge port

Connectivity

3.5mm Headset

3.5mm Headset Port Icon

DisplayPort x2

DisplayPort x2 Port Icon

Ethernet

Ethernet Port Icon

HDMI x3

HDMI x3 Port Icon

USB-A x2

USB-A x2 Port Icon

USB-C x5

USB-C x5 Port Icon
Back

Compatibility

Charging

Charge any device that accepts power delivery via USB-C - including, but not limited to:

  • Android Smartphones
  • Android Tablets
  • Windows Laptops
  • iPhones & iPads
  • MacBooks
  • ChromeOS Laptops

Video Output

Depending on your setup, this dock can output video to up to 3x 4K screens on Windows, MacOS & ChromeOS, via either USB-A or USB-C.

Display 1 & 2

Display 1 & Display 2 utilize DisplayLink technology to achieve video output.
It is recommended to install/update any DisplayLink drivers & software when first connecting your laptop to the dock.
To find out more, head to the "Downloads" tab.

Display 3 - Windows/ChromeOS Laptop Compatibility

Compatible with modern USB-C laptops that support video output over USB-C (DisplayPort Alt Mode).
Not supported on devices with data-only USB-C ports.

To check if your laptop supports video output over USB-C, look for a DisplayPort (DP), USB4 or Thunderbolt symbol next to the USB-C port.
If there are no markings next to the USB-C port, refer to the specifications listed in the user manual of your laptop. Look for mentions for “DisplayPort Alt Mode”, "Thunderbolt" or “USB-C video output.”
USB-C Ports without these indicators generally support data and charging only.

Display 3 - Apple Laptop Compatibility

Compatible with MacBook M1, M2, M3, M4 and M5 laptops.
USB-C video output behaviour may vary depending on your Mac model and macOS version.

If you're unsure about the compatibility of your device, please check with our support staff either via the Live Chat in the bottom right of the page or support@comsol.com.au

Back

Sustainability

THE SUSTAINABILITY HIERARCHY

The Sustainability Hierarchy empowers us to make eco-conscious choices at every stage of our products’ lifecycles, from refusing unnecessary items to recovering valuable resources, fostering a more sustainable future.

Making Informed Choices

All stages of the electronic product lifecycle are important to consider in order to be sustainable consumers. The Sustainability Hierarchy, also known as the Rs of Sustainability, is a valuable tool to help guide business and consumers in minimising our impact and making conscious choices.

9Rs image

As a brand it is important to consider which stage of the Sustainability Hierarchy aligns best with our efforts to minimise impact and contribute to a more sustainable future—particularly in early product design and manufacturing.

  • Refuse: We have said no to unnecessary plastic and harmful materials in products and packaging.
  • Rethink: We investigate innovative solutions to extend product life through durability and multifunctional design.
  • Reduce: We have reduced packaging volumes and optimised material usage in line with APCO assessments.

To view more click here.

Back

Downloads

Brochure

User Manual

DisplayLink DriversDownload DisplayLink Manager for MacOS or update Drivers for Windows, Mac & Chrome here
