USB-C Triple HDMI/DP Monitor 14 Port Docking Station
Features
90W
Fast Charging
USB-C
12-Port Dock
Triple
Monitor Output
Supports
Win & ChromeOS
4K UHD
3840 x 2160

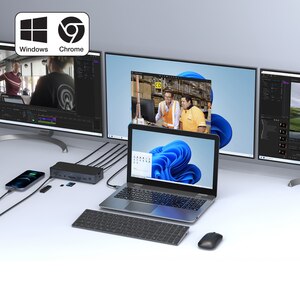

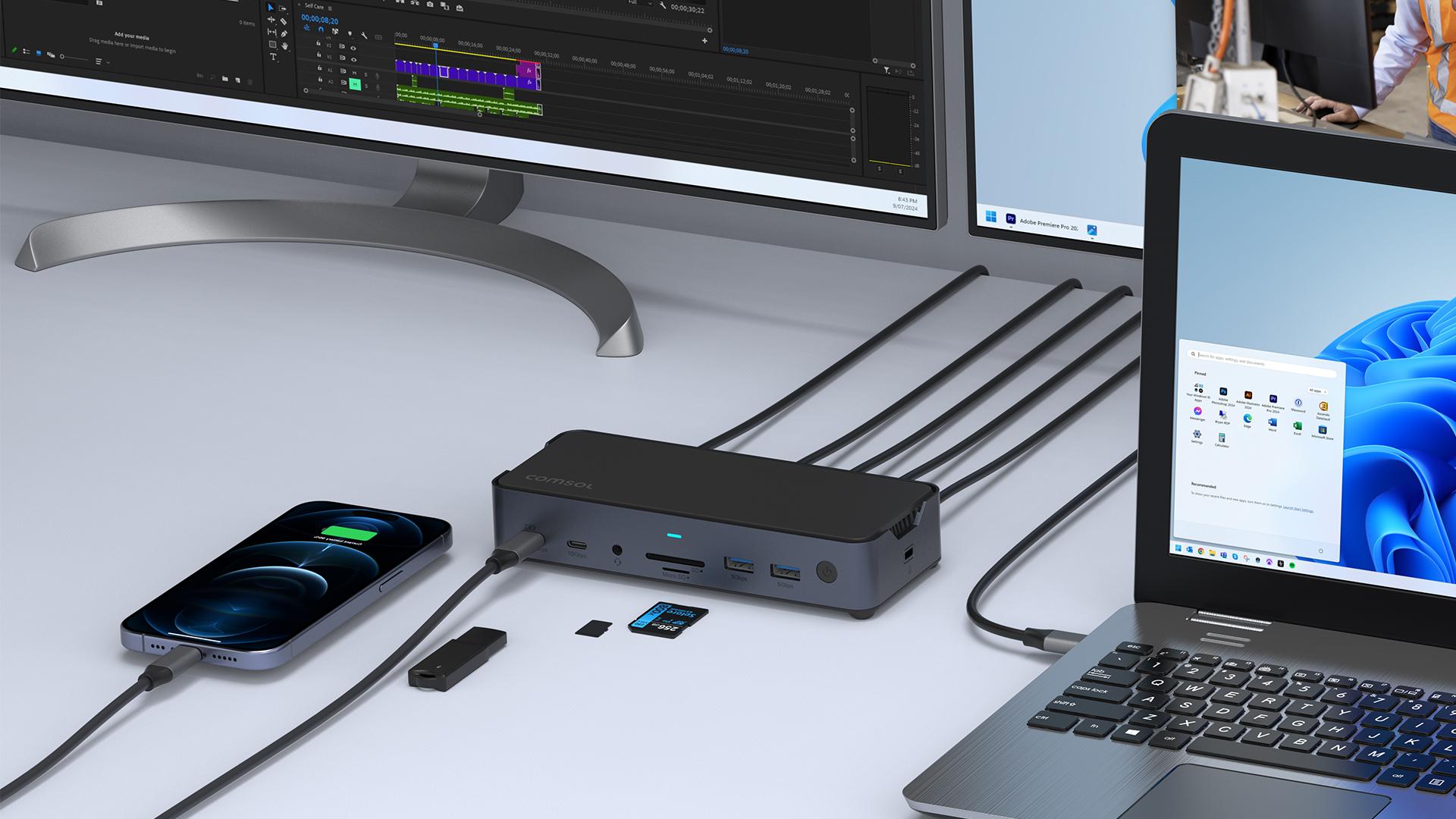

RUN TRIPLE MONITORS
In extended desktop mode on a Windows laptop or Chromebook
4K ULTRA HD AND 1080P HD
Support for single, dual or triple monitors
USB-C CHARGING PORT
With 30W of power to fast charge your phone
150W POWER ADAPTER
Included to power all connected devices and provide up to 90W of USB-C power for laptop charging
Specifications
Charging Specs
Windows Monitor Support: Yes
Mac/Chrome Monitor Support: Chrome: Yes Mac: Single Monitor

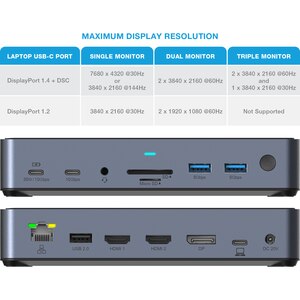

Max Single Resolution: 8K @30Hz (7680 x 4320) or 4K @144Hz (3840 x 2160)
Max Dual Resolution: 4K @60Hz (3840 x 2160)
Max Triple Resolution: 2 x 4K @60Hz (3820 x 2160) & 1 x 4K @30Hz (3840 x 2160)
Power Supply: 150W DC
Host Port Connection: USB-C

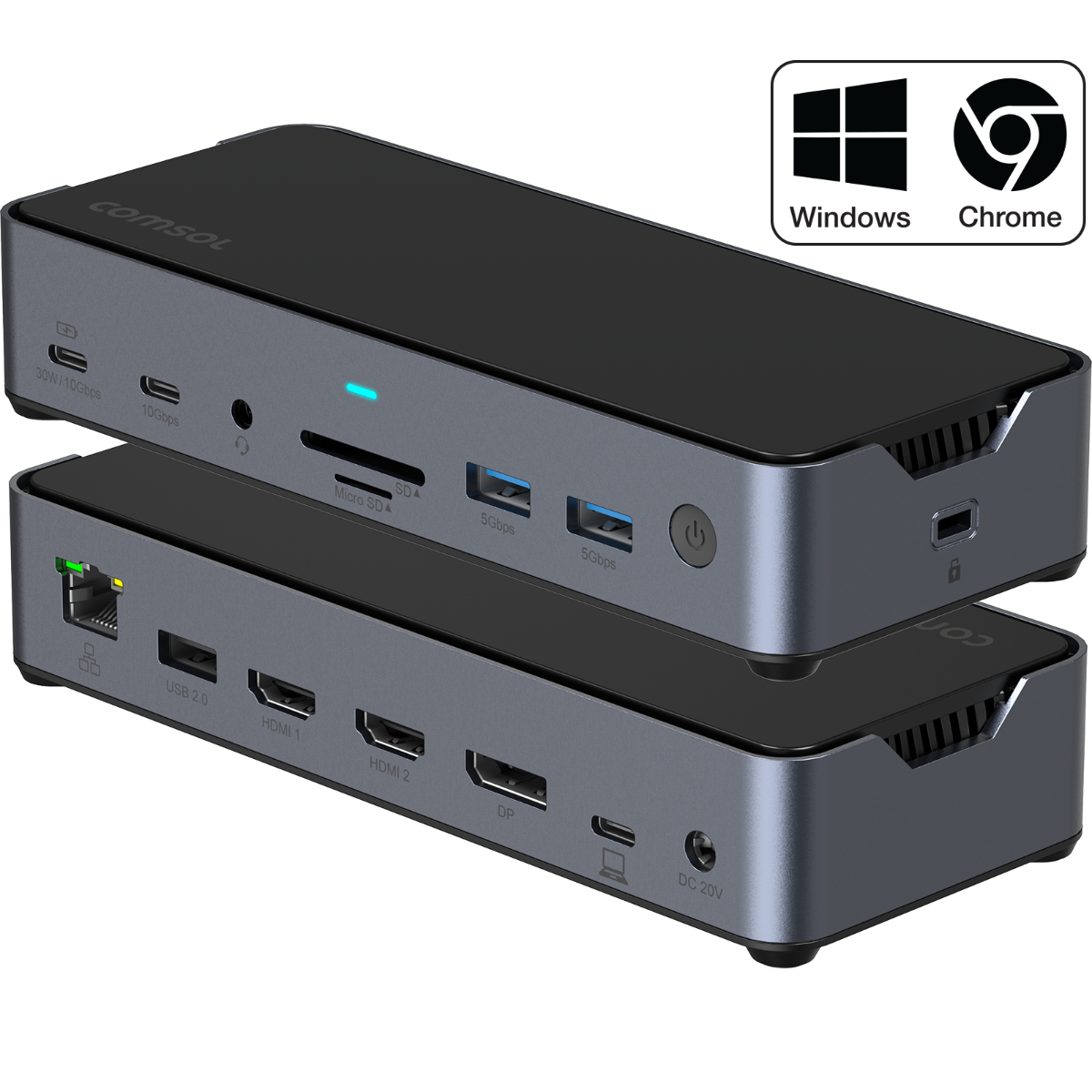

Expansion Ports: USB-C Data PD 30W Charge Port, USB-C 10Gbps Data Port, 3.5mm Audio Socket, SD Card/microSD Card, 2 x USB-A 5Gbps Data Ports, Power Button, Security Slot, RJ45 Gigabit LAN, USB-A 2.0 Port, 2 x HDMI Ports, DisplayPort Port, USB-C Host Port, DC Power Input
USB Fast Charge Ports: 1 x 30W
Security: Security Locking Slot
Product Dimensions: 168 x 69 x 33mm
Product Weight: 273g
OS Compatibility: Windows, ChromeOS
Host Display USB-C Requirements: USB-C Video via DP Alt Mode
Certification: EN IEC 62368-1:2020 + A11:2020, RCM, EMC

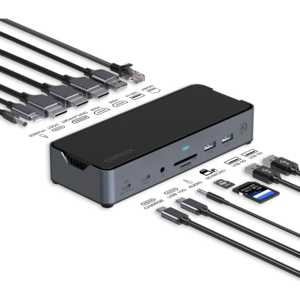

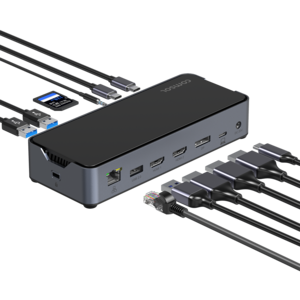

Connectivity
3.5mm Headset
DisplayPort
Ethernet
HDMI x2
Micro SD
SD Card
USB-A x3
USB-C x3
Compatibility
Video Output
Supports USB-C Video between supported devices, for example most:
- Windows Laptops
- ChromeOS Devices
Windows/ChromeOS Laptop Compatibility
Compatible with modern USB-C laptops that support video output over USB-C (DisplayPort Alt Mode).
Not supported on devices with data-only USB-C ports.
To check if your laptop supports video output over USB-C, look for a DisplayPort (DP), USB4 or Thunderbolt symbol next to the USB-C port.
If there are no markings next to the USB-C port, refer to the specifications listed in the user manual of your laptop. Look for mentions for “DisplayPort Alt Mode”, "Thunderbolt" or “USB-C video output.”
USB-C Ports without these indicators generally support data and charging only.
If you're unsure about the compatibility of your device, please check with our support staff either via the Live Chat in the bottom right of the page or support@comsol.com.au
