CMDL22P
Details
Reseller pricing available. Contact us now.
Product Brief
USB-C Dual HDMI Multiport Adapter.
USB-C to Dual HD 1080p HDMI, 4 x USB-A 1 x USB-C and up to 90W of USB-C Power Delivery.
Connect a MacBook, Windows laptop or Chromebook with a USB-C port to two HDMI displays to increase productivity.
Features

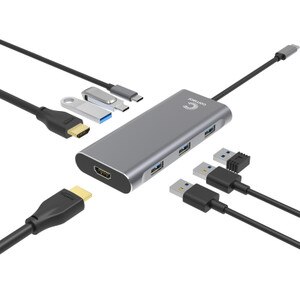

• Connect two monitors, a keyboard and mouse, USB storage devices and other USB peripherals all via a single USB-C connection
• DisplayLink technology supports dual monitor extended desktop mode for MacOS, Windows and ChromeOS, including MacBooks with M1 or Intel chips
• Supports Full HD 1920 x 1080 @60Hz for dual monitors
• 2 x HDMI monitor ports
• 4 x USB-A 3.0 and 1 x USB-C 3.1 data ports (5Gbps)
• 1 x USB-C female port for up to 90W of power pass through
Downloads
User Manual
Driver Download DisplayLink Manager for MacOS or update Drivers for Windows, Mac & Chrome here
Driver
Download DisplayLink Manager for MacOS or update Drivers for Windows, Mac & Chrome hereFAQ
Q: I have plugged in my monitors but I don't have any display on any of my monitors, what should I do?
A: Although Windows and ChromeOS have DisplayLink Drivers natively installed in the Operating system they may need updating. When you plug in a DisplayLink product and get no display then always update to the Latest Drivers Here first. In 99% of cases, once these are updated your displays will work. If you are a MacOS user then refer to the section of the User Manual that explains how to install the DisplayLink Manager. The DisplayLink Manager has to be running on MacOS for DisplayLink to work. If these steps do not solve your problem then please contact Comsol support on Live Chat or here and one of our team will give you further assistance
Q: I've been using the adapter for a few hours and it feels quite hot to touch, is that normal?
A: This is completely normal, there is a lot going on inside your product with several Integrated Chipsets providing displays, data and power to your laptop. Please always ensure your adapter is positioned in a well ventilated area and not left on fabric like a bedding or a lounge for extended periods of time to help keep your product cooler
Q: I only have one extra monitor, will this product work for me?
A: Absolutely The CMDL22P has much more to offer than just displays, and it gives you future proofing for if you ever upscale your workstation to more monitors
Q: I have a Mac, will this work for me?
A: Yes, this Docking Station works on a DisplayLink chipset making it a Universal multiple monitor dock for Windows, Mac or Chrome. On MacOS systems you will have to install the DisplayLink manager software to display multiple monitors
Q: The dock is connected but is unresponsive, what should i do?
A: Sometimes after a longer period of inactivity the sleep function may not wake up in normal way. In this case, or if the dock becomes unresponsive, first try unplugging and re plugging the USB-C connection, if this fails, disconnect the dock from the power and re boot your system, if you are still having problems please contact Comsol support
Q: I plugged in my dock but I get the same image on all of my screens. How do I get different images on each screen?
A: Right click the mouse on your desktop and select “Display Settings” In this App, scroll down to find the “Multiple Displays” dropdown menu and select the “Extend desktop to this display” option. This app is where you can also select your desired resolution of your display and in the "Advanced Display Settings” you can also select your desired screen refresh rate
Q: I don't have a USB-C port on my laptop, can I use a USB-A to USB-C Adapter with the CMDL22P?
A: Yes, if your laptop has a USB-A 3.0 5Gbps ports (usually blue inside the port) then you can plug the CMDL22P USB-C male in to a USB-A to USB-C adapter such as this AMCF01. Please not that if you choose this method that the USB-C Power Pass Through port on the CMDL22P is not supported
