UTP-05-C6A-UT-ORA
Details
Product Brief

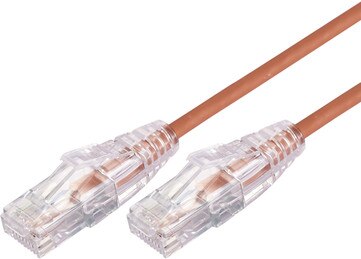

Comsol 10 Gigabit Ethernet Ultra Thin Cat 6A unshielded (UTP) patch cables are designed for high density, high performance networks in the data centre or where space, maximum speeds and reliability are required.
Our Ultra Thin Cat 6A UTP patch cables meet or exceed Cat 6A specifications including international TIA/EIA standards, IEEE 802.3an, ISO/IEC 11801 and carries the Regulatory Compliance Mark (RCM) to show each cable complies with all ACMA regulatory requirements.
Manufactured using 28AWG twisted pair stranded conductors and gold plated connectors to guarantee maximum performance and to ensure reliable data transmission in the most demanding network environments. Our Ultra Thin Cat 6A cables also feature staggered pin construction and offset twisted pairs to minimize Near End Crosstalk (NEXT) levels.
For durability and long lasting performance, Comsol Ultra Thin Cat 6A patch cables feature an integrated snagless connector to prevent unwanted cable snags during installation and protects the RJ45 connector clips from damage.
Features
• Future proof your network cabling infrastructure
• Supports 10 Gigabit Ethernet
• Supports Gigabit Ethernet
• Supports 10/100Mbps Fast Ethernet
• LSZH (Low Smoke Zero Halogen) cable jacket
• 28 AWG twisted pair stranded conductors
• Outer Diameter: 3.8mm
• RJ45 connectors with gold plated contacts for superior signal
• Constructed using high quality componentry to minimize Near End Crosstalk (NEXT) levels
• Staggered pin construction to reduce signal interference
• Snagless design avoids cable snags and protects RJ45 connector from damage
• Carries the Regulatory Compliance Mark (RCM) to show each cable complies with all ACMA regulatory requirements
• Compliant to ISO/IEC 11801 and IEEE 802.3an standards
• Compliant to Australian Standard AS/CA S008:2010
• Complies with T568A wiring standards
• Lifetime warranty
