SFP-10G-SR-HP
Details
Product Brief

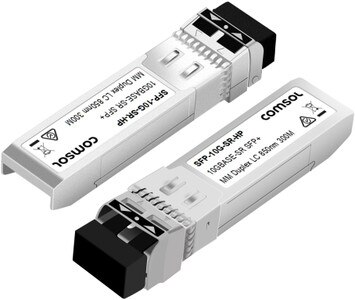

This HP and Aruba compatible SFP-10G-SR SFP+ transceiver module is factory loaded with HP and Aruba specific configuration data required for 100% HP and Aruba networking compliance. This Comsol 3rd party compatible transceiver will initialise and perform identically to the original HP and Aruba transceiver and can be mixed and deployed with other original HP and Aruba or 3rd party transceivers for seamless network interoperability and performance.
Every HP and Aruba compatible SFP+ transceiver is individually factory-tested to ensure 100% compatibility with your HP and Aruba equipment and to guarantee hassle free installation and operation.
Specifications:
• HP and Aruba compatible SFP-10G-SR SFP+ transceiver module
• Dual LC fibre connectors
• Fibre Type: Multi-Mode
• Fibre Wavelength: 850nm VCSEL transmitter
• Hot-swappable input/output device that plugs into an Ethernet SFP+ port of a HP and Aruba switch
• Supports digital diagnostics monitoring (DDM)
• Optical interoperability with 10GBASE XENPAK, 10GBASE X2 and 10GBASE XFP interfaces on the same link
• Compliant with Small Form-Factor Pluggable (SFP) MSA specifications
• Compliant with IEEE802.3ae 10GBASE-SR
• Supports 10GBASE Ethernet and OTU2/OTU2e
• Supports Fibre Channel: 1GFC, 2GFC, 4GFC and 8GFC
• Supports a maximum distance of 33mtr over OM1 62.5/125 multi-mode fibre
• Supports a maximum distance of 82mtr over OM2 50/125 multi-mode fibre
• Supports a maximum distance of 300mtr over laser-optimized OM3 50/125 multi-mode fibre
• Supports a maximum distance of 400mtr over laser-optimized OM4 50/125 multi-mode fibre
• Single 3.3V power supply and TTL logic interface
• Approvals: C-Tick, FCC, CE, RoHS, ISO9001, TUV, UL
This HP and Aruba compatible SFP-10G-SR SFP+ transceiver module is factory loaded with HP and Aruba specific configuration data required for 100% HP and Aruba networking compliance. This Comsol 3rd party compatible transceiver will initialise and perform identically to the original HP and Aruba transceiver and can be mixed and deployed with other original HP and Aruba or 3rd party transceivers for seamless network interoperability and performance.
Every HP and Aruba compatible SFP+ transceiver is individually factory-tested to ensure 100% compatibility with your HP and Aruba equipment and to guarantee hassle free installation and operation.
Specifications:
• HP and Aruba compatible SFP-10G-SR SFP+ transceiver module
• Dual LC fibre connectors
• Fibre Type: Multi-Mode
• Fibre Wavelength: 850nm VCSEL transmitter
• Hot-swappable input/output device that plugs into an Ethernet SFP+ port of a HP and Aruba switch
• Supports digital diagnostics monitoring (DDM)
• Optical interoperability with 10GBASE XENPAK, 10GBASE X2 and 10GBASE XFP interfaces on the same link
• Compliant with Small Form-Factor Pluggable (SFP) MSA specifications
• Compliant with IEEE802.3ae 10GBASE-SR
• Supports 10GBASE Ethernet and OTU2/OTU2e
• Supports Fibre Channel: 1GFC, 2GFC, 4GFC and 8GFC
• Supports a maximum distance of 33mtr over OM1 62.5/125 multi-mode fibre
• Supports a maximum distance of 82mtr over OM2 50/125 multi-mode fibre
• Supports a maximum distance of 300mtr over laser-optimized OM3 50/125 multi-mode fibre
• Supports a maximum distance of 400mtr over laser-optimized OM4 50/125 multi-mode fibre
• Single 3.3V power supply and TTL logic interface
• Approvals: C-Tick, FCC, CE, RoHS, ISO9001, TUV, UL
