Part No. FLCLC-7.5-OM4

ETA 10-12 working days from order


Product Brief
OM4 laser-optimized multi-mode fibre (LOMMF) cables support up to 100 Gigabit high speed network applications and offer complete backward compatibility with existing 50/125 OM3 and 50/125 OM2 cabling systems.

Our OM4 50/125 fibre patch cables feature a flame retardant LSZH (Low Smoke, Zero Halogen) cable jacket to ensure minimal toxic and corrosive gas emissions in the event of a fire, making them compatible with most data centre requirements and critical area applications.

OM4 cables support 40Gb & 100Gb transfer speeds up to 150 metres and also support 10Gb up to 550 metres and 1Gb up to 1000 metres. Each cable is 100% optically tested and supplied with its own individual insertion loss test report for maximum performance and reliability.

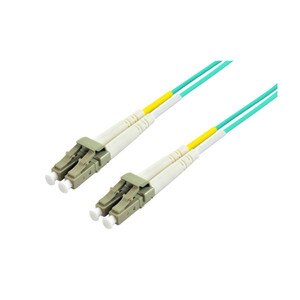

  • LC male connector to LC male connector
  • Aqua 50/125 OM4 laser-optimized fibre cable with LSZH jacket
  • Backward compatible with 50/125 OM3 and 50/125 OM2
  • Supports 1Gb Ethernet up to 1km
  • Supports 10Gb Ethernet up to 550 metres
  • Supports 40Gb and 100Gb Ethernet up to 150 metres
  • Full support for LED & VCSEL light sources @ 850nm & 1300nm
  • Bandwidth: 4700/500 MHz-km @ 850//1300nm
  • 100% optically tested and supplied with individual insertion loss test report
  • Typical insertion loss <0.2dB
  • Typical return loss >35dB
  • Jacket outside diameter (OD) 1.8mm
  • Lifetime warranty
