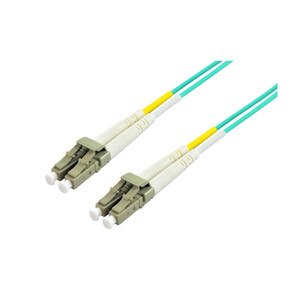

Product BriefLC male connector to LC male connectorAqua 50/125 OM4 laser-optimized fibre cable with LSZH jacketBackward compatible with 50/125 OM3 and 50/125 OM2Supports 1Gb Ethernet up to 1kmSupports 10Gb Ethernet up to 550 metresSupports 40Gb and 100Gb Ethernet up to 150 metresFull support for LED & VCSEL light sources @ 850nm & 1300nmBandwidth: 4700/500 MHz-km @ 850//1300nm100% optically tested and supplied with individual insertion loss test reportTypical insertion loss <0.2dBTypical return loss >35dBJacket outside diameter (OD) 1.8mmLifetime warranty
OM4 laser-optimized multi-mode fibre (LOMMF) cables support up to 100 Gigabit high speed network applications and offer complete backward compatibility with existing 50/125 OM3 and 50/125 OM2 cabling systems.
Our OM4 50/125 fibre patch cables feature a flame retardant LSZH (Low Smoke, Zero Halogen) cable jacket to ensure minimal toxic and corrosive gas emissions in the event of a fire, making them compatible with most data centre requirements and critical area applications.
OM4 cables support 40Gb & 100Gb transfer speeds up to 150 metres and also support 10Gb up to 550 metres and 1Gb up to 1000 metres. Each cable is 100% optically tested and supplied with its own individual insertion loss test report for maximum performance and reliability.
